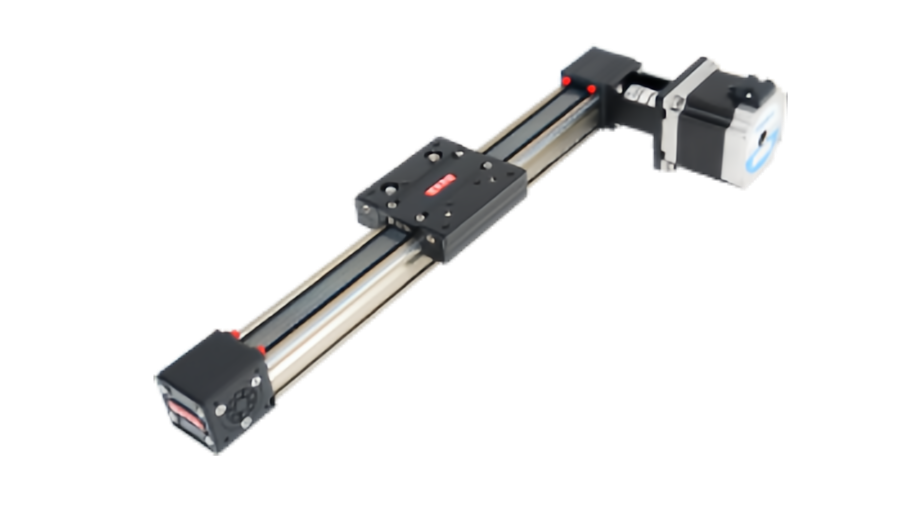

Linear Modules in Semiconductor Equipment: Precision Motion for Wafer Handling

Semiconductor equipment places unusually demanding requirements on motion systems. A transfer axis may need to move wafers quickly without excessive vibration, a die-bonding stage may need extremely stable placement, and an inspection platform may need smooth motion with minimal geometric error over the measurement area.

This is where alinear module for semiconductor equipmentdiffers from a general-purpose automation axis. Speed and payload still matter, but particle generation, thermal stability, vibration, settling time, cable behavior, material compatibility and long-term repeatability can become equally important.

This guide looks at howlinear modulesare used in wafer handling, die bonding, semiconductor inspection and related equipment, and explains what engineers should evaluate when selecting a precision motion platform for clean manufacturing environments.

Semiconductor Motion Is Not One Single Requirement

“Semiconductor equipment” covers many very different processes. A module used to transfer a wafer carrier does not face the same requirements as a fine-positioning stage used under an optical inspection system.

A useful way to classify linear motion tasks is by function:

Selection principle:do not specify one “high-precision linear module” for every axis in the machine. Transfer, alignment, inspection and bonding axes should each be sized around their own motion task.

Wafer Handling: Fast Motion Must Still Be Gentle

Wafer handling systems move substrates between process stations, load ports, carriers, inspection areas and other parts of the equipment. The motion may be fast, but the wafer cannot be treated like an ordinary industrial workpiece.

Important requirements often include:

• Repeatable pick and place positions
• Smooth acceleration and deceleration
• Low vibration at the end of the move
• Short settling time
• Reliable homing and sensing
• Controlled cable and tube movement
• Low particle generation

Why motion profile matters

An aggressive acceleration profile can reduce theoretical move time but increase vibration and settling time after the carriage reaches its target. In wafer handling, the best cycle time often comes from optimizing the complete move-and-settle sequence rather than maximizing acceleration alone.

Why the end effector changes module sizing

The module may carry a wafer blade, vacuum end effector, sensor package, tubing and cables. These components add moving mass and can create an offset center of gravity.

The load should therefore be evaluated as a complete mechanical assembly, including pitch, yaw and roll moments—not only the wafer mass.

Die Bonding: Positioning Is Only Part of the Challenge

Die bonding requires controlled placement of individual dies onto a substrate or package. The motion system must move quickly between positions while still reaching a stable final position for the bonding process.

For this type of axis, engineers may need to balance:

• Placement repeatability
• Absolute positioning accuracy
• Short settling time
• Low reversal error
• High structural stiffness
• Fine low-speed motion
• Thermal stability

Tool-center position is what matters

A module can have excellent carriage repeatability while the bonding tool still moves because of bracket deflection, angular error or thermal growth. The complete error chain extends from the encoder and drive mechanism through the carriage, mounting plate and bonding head.

Precision rule:evaluate accuracy at the process point, not only at the linear module carriage.

Semiconductor Inspection Stages Need Smooth, Predictable Motion

Inspection systems may scan wafers, substrates, packages or other semiconductor structures under cameras, microscopes or optical sensors.

The required motion is often different from pick-and-place motion. Instead of a rapid point-to-point move, the system may need:

• Constant-velocity scanning
• Low velocity ripple
• Good straightness
• Stable encoder feedback
• Low vibration
• Repeatable return to measurement coordinates

Why straightness can matter as much as positioning accuracy

If the carriage deviates sideways or vertically while scanning, the optical path or focus condition can change even when the commanded X position is correct.

For inspection equipment, geometric accuracy such as straightness, pitch and yaw may therefore need to be specified separately from ordinary positioning repeatability.

Cleanroom Requirements Change the Motion-System Design

Clean manufacturing is not achieved simply by choosing a stainless-steel cover or calling a module “cleanroom type.” Particle behavior depends on the complete motion system and how it is integrated into the machine.

Important design areas include:

• Particles generated by rolling and sliding contact
• Lubricant migration or evaporation
• Seal and wiper wear
• Belt, cable and drag-chain particle generation
• Corrosion and surface treatment
• Airflow around the moving axis
• Cleaning and maintenance procedures

Cleanroom class should be treated as an equipment requirement

The required cleanliness level comes from the semiconductor process and the clean environment in which the equipment will operate. A motion component should therefore be evaluated as part of the final machine rather than assumed to meet a cleanliness requirement from drive type alone.

Lubrication Must Support Both Life and Cleanliness

Linear guides and ball screws need suitable lubrication, but conventional industrial lubrication practices may not always be appropriate in sensitive clean environments.

Selection may need to consider:

• Particle generation
• Low volatility
• Outgassing requirements where applicable
• Material and seal compatibility
• Long-term lubrication stability
• Controlled application quantity

Under-lubrication can increase friction and wear, while over-lubrication can create drag and excess grease migration. The correct lubricant and service method should be selected for the actual module and clean manufacturing environment.

Why Linear Motor Modules Are Attractive in High-Dynamic Semiconductor Axes

A linear motor generates force directly without a ball screw, timing belt or rack-and-pinion transmission. This removes several mechanical elements that can introduce backlash, transmission compliance and wear.

Potential advantages include:

• No screw or belt transmission backlash
• High acceleration capability
• High speed capability
• Fast direction reversal
• Direct compatibility with high-resolution linear feedback
• Reduced mechanical transmission wear

These characteristics can make direct-drive modules attractive for inspection, alignment and other high-dynamic precision axes.

But direct drive is not automatically the best solution

Linear motors require careful thermal management, feedback design, cable management and servo control. They can also cost more than screw- or belt-driven systems.

The correct choice depends on whether the process actually benefits from the additional dynamic and positioning capability.

Where Ball Screw Modules Still Make Sense

Ball screw linear modulesremain useful in semiconductor equipment when the application needs a compact, stiff and efficient mechanical drive.

They can be suitable for:

• Precision positioning axes
• Z-axis lifting
• Moderate-stroke alignment
• Tool adjustment
• Process stations where controlled thrust is useful

For precision semiconductor applications, screw lead accuracy, preload, bearing support, lubrication and thermal growth should be evaluated together.

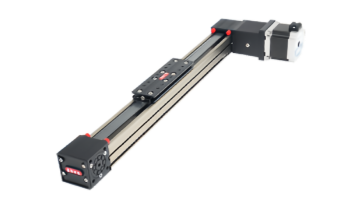

Where Timing Belt Modules Can Be Useful

Timing belt modulesare well suited to longer-stroke transfer tasks where high linear speed and low moving mass are more important than very high absolute positioning accuracy.

Possible uses include:

• Magazine or tray transfer
• Loading and unloading
• Long-axis material transfer
• Peripheral handling outside the most sensitive process zone

In clean manufacturing applications, belt material, particle behavior, pulley alignment and enclosure design need additional attention.

Precision Is a System-Level Requirement

A semiconductor precision linear stage can only achieve stable performance if the complete error budget is controlled.

Repeatability Alone Is Not Enough

Semiconductor machinery often requires several different motion specifications at the same time.

For example:

• Repeatabilitydetermines whether the stage returns consistently to the same target.
• Positioning accuracydetermines whether the actual position matches the commanded coordinate.
• Straightnessdescribes lateral or vertical path error.
• Pitch and yawdescribe angular change during travel.
• Settling timedetermines how quickly the axis becomes stable enough for the next process step.

An inspection stage and a transfer stage may therefore need completely different acceptance criteria even if both are described as “precision axes.”

Thermal Stability Becomes More Important as Precision Increases

Semiconductor equipment often runs for long periods, so the motion system can move from a cold start to a stable operating temperature.

Heat may come from:

• Servo motors
• Linear motor coils
• Ball screw and guide friction
• Drives and electronics
• Nearby process equipment

Temperature changes can alter the effective length of the base, screw, encoder reference and machine structure. As mechanical errors become smaller, these thermal effects can become a larger share of the total positioning error.

Practical thermal controls

• Separate major heat sources from precision references
• Use repeatable machine warm-up procedures
• Maintain stable ambient conditions where required
• Consider low-expansion structures for critical stages
• Use calibration or compensation when appropriate

Vibration and Settling Time Directly Affect Throughput

A high-speed axis is not necessarily a high-throughput axis.

If the module reaches its target quickly but the bonding head or camera continues to vibrate, the process must wait before placement or measurement can begin.

Settling performance depends on:

• Moving mass
• Structural stiffness
• Tooling overhang
• Motor and drive tuning
• Motion profile
• Guide preload
• Base and frame dynamics

For high-cycle semiconductor equipment, optimizing move time without measuring settling time can produce the wrong mechanical design.

Cable Management Is Part of Precision Motion

Cables, vacuum tubes, air lines and sensor wiring move with many semiconductor axes. Their effect is often underestimated.

A poorly designed cable route can:

• Add variable drag force
• Create side load on the carriage
• Generate particles through repeated flexing
• Transmit vibration to the stage
• Limit usable stroke

For sensitive equipment, cable carriers and flexible services should be included in the load, cleanliness and motion analysis from the beginning.

Multi-Axis Semiconductor Stages Need Hierarchical Sizing

Wafer handling, inspection and bonding systems often use XY, XYZ or gantry structures.

In a stacked system, the lower axis carries the upper axis, its motor, sensors, tooling and process load. Therefore, the X and Y axes may require very different capacities even if their strokes are similar.

Multi-axis sizing rule:start at the process tool and work outward. Each lower axis must include the mass and dynamic load of everything mounted above it.

Feedback Selection Depends on What Must Be Controlled

Motor encoders are sufficient for many transfer and positioning applications, but demanding precision stages may benefit from direct linear feedback.

Motor-side feedback

The controller estimates linear position from motor rotation and the transmission ratio. This is compact and widely used, but errors between the motor and carriage may not be measured directly.

Linear scale feedback

A linear scale measures carriage position more directly and can reduce dependence on screw lead accuracy, belt elasticity or gearbox behavior.

The scale itself still needs accurate installation, thermal stability and suitable controller support.

Reliability Matters Because Downtime Is Expensive

A semiconductor motion system must maintain accuracy and cleanliness over a large number of cycles, not only during initial acceptance testing.

Long-term reliability depends on:

• Correct load and moment sizing
• Controlled acceleration
• Stable lubrication
• Contamination protection
• Cable life
• Sensor repeatability
• Thermal management
• Preventive maintenance

Condition trends such as servo torque, motor current, vibration and temperature can help identify changes before they become production failures.

Questions to Answer Before Selecting a Semiconductor Linear Module

1. What is the process function?Transfer, bonding, inspection, alignment or loading?
2. What must move?Include the complete end effector, cables, tubing and upper axes.
3. How fast must the process complete?Separate move time from settling time.
4. Which precision metrics matter?Repeatability, absolute accuracy, straightness, angular error or scan stability?
5. What cleanliness requirement applies?Evaluate the full module and machine environment.
6. What feedback method is required?Motor encoder or direct linear scale?
7. How stable must the temperature be?Consider both machine heat and ambient variation.
8. What is the expected duty cycle?High-cycle semiconductor axes need life and maintenance planning.
9. How will cables and services move?Include drag, particle generation and routing.
10. How will the stage be validated?Define the measurement method before final acceptance.

Choosing the Drive Type by Semiconductor Motion Task

These are starting points, not fixed rules. Final selection depends on stroke, payload, process accuracy, clean environment, thermal design and cost.

What QRXQ Needs to Evaluate a Semiconductor Application

For a useful recommendation, provide:

• Process function: wafer handling, bonding, inspection, alignment or transfer
• Required stroke
• Moving mass and center of gravity
• Maximum speed and acceleration
• Move time and settling-time target
• Positioning accuracy and repeatability requirement
• Straightness or angular accuracy if relevant
• Clean environment requirement
• Temperature range and thermal stability requirement
• Motor and feedback preference
• Daily duty cycle
• Multi-axis structure or equipment drawing

For semiconductor motion, “high precision” is not a complete specification.The useful specification is a combination of motion accuracy, settling behavior, cleanliness, thermal stability and long-term repeatability at the actual process point.

QRXQ evaluates semiconductor linear module applications by matching the motion task to the drive structure and then checking precision, cleanliness, dynamic performance and integration as one system.
