Selecting a timing belt for alinear moduleis not a matter of choosing the widest belt that fits the profile. The belt has to match the pulley tooth form, transmit the required force without tooth jump, provide enough tensile stiffness for positioning, survive repeated bending around the pulleys and remain stable under the actual temperature, speed and duty cycle.

A correcttiming belt selection for a linear moduletherefore starts with the motion requirement and works backward through tooth profile, pitch, belt width, tensile member, pulley size and pretension.

This guide explains how to make those decisions and why two belts with the same width can behave very differently in the same linear axis.

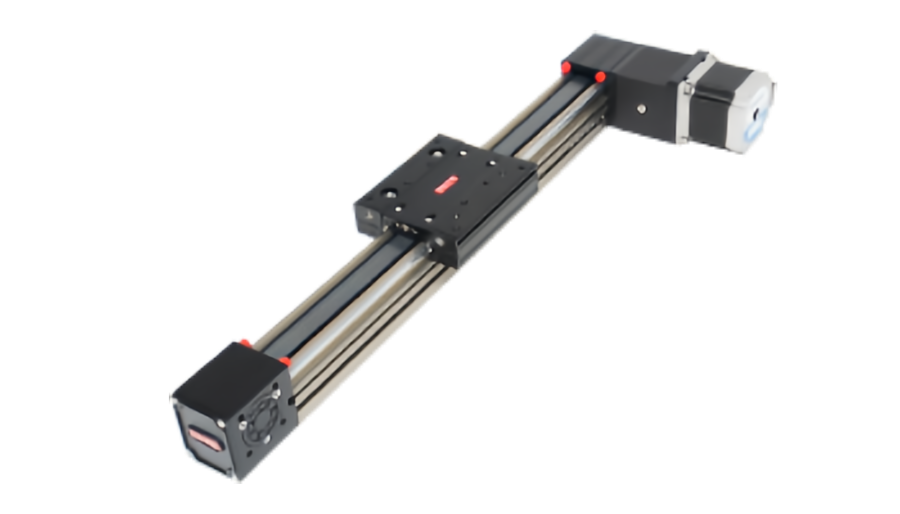

How to Select the Right Timing Belt for Your Linear Module

Start With the Motion Requirement

Before choosing a belt profile or width, define what the linear module must do.

The useful inputs include:

  • Moving mass
  • Required stroke
  • Maximum linear speed
  • Acceleration and deceleration
  • Horizontal or vertical mounting
  • External process force
  • Cycle rate and operating hours
  • Required repeatability
  • Temperature and contamination
  • Available pulley diameter and module width

Selection rule:do not choose the belt from payload alone. Acceleration, pulley size, tooth engagement and duty cycle can be just as important as the static load.

Step 1: Choose the Correct Tooth Profile

The tooth profile defines how the belt engages with the pulley. Common industrial synchronous-belt families include trapezoidal profiles and curvilinear profiles, with several metric and manufacturer-specific variants available.

The most important rule is simple:

The belt tooth profile and pulley tooth profile must match exactly.

The same nominal pitch does not mean two different tooth families are interchangeable.

Trapezoidal profiles

Trapezoidal timing-belt profiles have straight-sided tooth geometry and are widely used in positioning and general automation systems.

They can be a practical choice when:

  • The system already uses matching pulleys
  • Moderate force and speed are required
  • Replacement availability is important
  • The existing module design is based around that tooth geometry

Curvilinear profiles

Curved or modified-curvilinear tooth forms are commonly used where higher tooth load capacity, smoother engagement or improved load distribution is desired.

Depending on the belt family, they may offer advantages in high-acceleration or higher-load axes, but the actual allowable force must be taken from the belt manufacturer's rating data.

Do not mix profiles by visual similarity

A belt may appear to fit a pulley even when the tooth geometry is not correct. Incorrect engagement can concentrate stress, increase noise and accelerate tooth wear.

Step 2: Select Belt Pitch

Belt pitchis the distance between corresponding points on adjacent belt teeth.

Pitch affects:

  • Tooth size
  • Allowable transmitted force
  • Minimum practical pulley size
  • Linear distance moved per pulley revolution
  • Drive compactness
  • Potential positioning resolution from the mechanical transmission

Smaller pitch

A smaller pitch can support a more compact pulley and finer mechanical increment per pulley tooth. It is commonly attractive for compact, moderate-load positioning systems.

Larger pitch

A larger pitch generally provides larger teeth and can support higher force when used with appropriate belt width and pulley geometry. It may be more suitable for heavier or more aggressive motion.

However, larger pitch also tends to require larger pulleys and more installation space.

Pitch Is Not a Standalone Load Rating

Two belts with the same pitch can have very different capabilities because belt width, tensile member, tooth material, pulley tooth count and operating speed also affect the rating.

Therefore, do not use a rule such as “this pitch handles this many kilograms.”

The correct process is:

  1. Calculate the required belt force.
  2. Select a suitable tooth profile and pitch.
  3. Check the belt manufacturer's allowable force for the actual width and pulley.
  4. Confirm tooth engagement and pulley limits.
  5. Apply the manufacturer's service or correction factors where required.

Step 3: Determine the Belt Width

Belt widthdirectly influences how much tensile and tooth load the belt can carry and also affects axial stiffness.

A wider belt can generally provide:

  • Higher allowable transmitted force
  • Higher tensile stiffness
  • Lower elastic elongation under the same force
  • More tooth contact area

But a wider belt also requires:

  • Wider pulleys
  • More module space
  • Potentially higher cost
  • Careful alignment across the wider tooth face

Do not oversize width without checking the rest of the system

If the real limitation is pulley bearing load, module profile stiffness or motor torque, simply increasing belt width will not solve the complete design problem.

Step 4: Calculate the Required Belt Force

For a simplified horizontal axis, the force that the belt must transmit can be estimated from:

Fmove= m × a + Fresistance+ Fprocess

where:

  • m= total moving mass
  • a= linear acceleration
  • Fresistance= guide, seal and cable resistance
  • Fprocess= external process force

For vertical motion

Gravity must be included:

Fup= m(g + a) + Fresistance+ Fprocess

The belt and drive should then be checked against the most demanding segment of the motion cycle.

Dynamic Force Is Often More Important Than Static Payload

Consider two axes carrying the same 15 kg moving mass. One accelerates gently; the other reaches full speed in a fraction of a second.

The second axis produces much higher belt force even though the payload is identical.

This is why high-speed pick-and-place systems often need a wider or stiffer belt than slower transfer systems with the same payload.

Step 5: Check Tooth Engagement

The belt transmits force through the teeth that are engaged with the pulley. The number of teeth in contact affects how the load is shared.

Important factors include:

  • Pulley tooth count
  • Wrap angle
  • Belt tension
  • Drive layout
  • Peak transmitted force

Too few engaged teeth can create local overload

If only a small number of teeth carry the load, tooth stress increases and the risk of tooth jump or accelerated wear can rise.

Use the belt manufacturer's minimum engagement and pulley recommendations for the selected profile.

Step 6: Check Minimum Pulley Size

A smaller pulley makes the module more compact, but it bends the timing belt more sharply.

Excessively small pulleys can increase:

  • Belt bending stress
  • Tensile-member fatigue
  • Tooth deformation
  • Bearing speed

Every belt family has recommended minimum pulley sizes or tooth counts. These limits should be treated as part of belt selection, not as an afterthought.

Pulley Diameter Also Changes Motor Torque

For a belt-driven axis, pulley pitch radius links linear force to motor torque:

T = F × r ÷ h

A larger pulley moves more belt per revolution and can reduce required motor speed for a given linear speed, but it also requires more torque for the same linear force.

A smaller pulley does the opposite, within the belt's allowable bending and tooth-engagement limits.

Step 7: Choose the Belt Material

The belt body material affects wear, temperature behavior, chemical resistance, noise and environmental suitability.

Two common material families are polyurethane-based belts and rubber/elastomer-based synchronous belts.

Polyurethane timing belts

Polyurethane belts are common in precision automation and linear positioning systems because they can provide good wear resistance and dimensional stability.

Depending on construction, they may be selected for:

  • Clean automation
  • High-cycle positioning
  • Applications needing good abrasion resistance
  • Special coatings or backing profiles

Rubber or elastomer timing belts

Rubber-based belts are widely used in industrial power transmission and can provide good flexibility and damping.

The correct choice depends on temperature, environment, pulley diameter, required stiffness and manufacturer ratings.

Material selection should follow the real environment.Oil, coolant, cleaning chemicals, humidity and temperature can change belt life significantly.

Step 8: Choose the Tensile Member

The internal tensile member carries most of the belt tension and has a major effect on axial stiffness.

Common tensile-member materials can include:

  • Steel cord
  • Aramid fiber
  • Fiberglass or other reinforcement systems

Steel-cord belts

Steel reinforcement can provide high tensile stiffness and low elastic elongation, which is attractive for long-stroke positioning.

Trade-offs can include minimum pulley diameter, mass and fatigue sensitivity if the belt is bent more tightly than intended.

Fiber-reinforced belts

Aramid or fiberglass reinforcement can offer different combinations of flexibility, weight, stiffness and environmental behavior.

The correct tensile member should be chosen from the belt manufacturer's data rather than from material name alone.

Belt Stiffness Affects Positioning Performance

The same transmitted force produces more elastic displacement in a less-stiff belt.

Conceptually:

Elastic displacement ≈ belt force ÷ effective tensile stiffness

This becomes increasingly important when:

  • The stroke is long
  • The moving mass is high
  • Acceleration is high
  • Absolute positioning accuracy matters
  • The load changes significantly during the cycle

For demanding positioning axes, belt width and tensile-member stiffness should therefore be considered together.

Step 9: Set the Correct Pretension

Timing belts require appropriate installation tension to maintain tooth engagement and positioning stability.

Too little pretension

Possible problems include:

  • Belt vibration
  • Tooth jump
  • Higher reversal error
  • Poor positioning consistency

Too much pretension

Possible problems include:

  • Higher pulley-bearing load
  • Higher motor torque demand
  • Accelerated belt fatigue
  • Additional structural load

The correct pretension is the value specified for the actual belt and drive geometry—not “as tight as possible.”

How Is Belt Tension Set?

Depending on the belt manufacturer and module design, tension may be checked by:

  • Specified belt deflection under a known force
  • Frequency measurement
  • Mechanical tension gauges
  • Factory-defined adjustment dimensions

The same approved method should be used when the belt is replaced or retensioned.

Step 10: Check Speed and Bending Frequency

High linear speed increases belt cycling frequency around the pulleys. Even if the transmitted force is moderate, repeated bending can become a life factor.

Check:

  • Maximum belt speed
  • Pulley rotational speed
  • Minimum pulley diameter
  • Cycle frequency
  • Operating hours per day

A belt suitable for occasional transfer may not be the best choice for a high-cycle axis reversing every few seconds.

Long-Stroke Axes Need Extra Attention to Belt Length

One advantage of timing belts is that they scale well to long travel. But longer free belt length increases the amount of elastic material in the force path.

This can affect:

  • Positioning compliance
  • Vibration
  • Thermal length change
  • Pretension stability

For long-stroke precision motion, high belt stiffness, correct tension and suitable feedback become more important.

Open and Enclosed Modules May Use Different Belt Requirements

Open modules

The belt is easier to inspect but more exposed to dust, oil mist and process debris. Material compatibility and contamination control become important.

Enclosed modules

The belt receives more environmental protection, but internal temperature and service access may become more important. The cover design should not interfere with belt tracking or maintenance.

When Special Belt Backings or Coatings Are Useful

Some automation belts are available with special backing surfaces, coverings or custom profiles.

These can be useful when the belt itself carries, indexes or contacts the product, for example:

  • Product transport
  • Vacuum handling
  • Soft-contact conveying
  • High-friction transfer

For a conventional linear module where the belt only transmits force internally, these special backings may not be necessary.

Common Timing Belt Selection Mistakes

Choosing by width only

Width is only one part of capacity. Tooth profile, pitch, pulley size and tensile member also matter.

Assuming belts with the same pitch are interchangeable

Different tooth profiles can share the same nominal pitch but require different pulleys.

Ignoring acceleration

High acceleration can produce much higher belt force than static payload suggests.

Using the smallest pulley that physically fits

Compactness is not worth reducing belt life or violating minimum pulley recommendations.

Using excessive pretension to improve accuracy

Too much tension increases bearing and belt load and does not guarantee better positioning.

Ignoring the environment

Oil, dust, chemicals and temperature can shorten life even when the belt is mechanically large enough.

Replacing the belt without checking the pulleys

Worn, contaminated or misaligned pulleys can quickly damage a new belt.

A Practical Timing Belt Selection Workflow

  1. Define the motion profile.Stroke, speed, acceleration, cycle time and mounting direction.
  2. Calculate the required linear force.
  3. Select a tooth-profile family compatible with the module design.
  4. Select a practical pitch.
  5. Choose preliminary pulley tooth count and diameter.
  6. Check minimum pulley and tooth-engagement requirements.
  7. Select belt width from allowable transmitted force.
  8. Check tensile stiffness for positioning requirements.
  9. Select belt body and tensile-member material for the environment.
  10. Set pretension using the specified method.
  11. Check motor torque and speed with the final pulley size.
  12. Check duty cycle, belt speed and expected service life.

What QRXQ Needs to Select a Belt for a Linear Module

  • Module model or profile size
  • Required stroke
  • Moving mass
  • Maximum speed
  • Acceleration
  • Horizontal or vertical installation
  • External process force
  • Required repeatability
  • Available module width and pulley space
  • Operating temperature
  • Dust, oil or chemical exposure
  • Daily cycle count

The correct timing belt is a system choice.Tooth profile, pitch, width, tensile member, pulley size and pretension must work together. Changing one parameter can alter motor torque, stiffness, positioning and belt life.

QRXQ evaluates timing belt selection from the complete linear-motion requirement rather than choosing belt size from payload alone.
